Fill-Rite FR4210HBFQ 12V 20 GPM Fuel Transfer Pump w/Particulate Filter Package
Fill-Rite FR4210HBFQ 12V 20 GPM Fuel Transfer Pump w/Particulate Filter Package
Fill-Rite's 4200 Series of heavy-duty fuel transfer pumps feature simple installation with a rotatable junction box and are built to last with cast-iron construction.

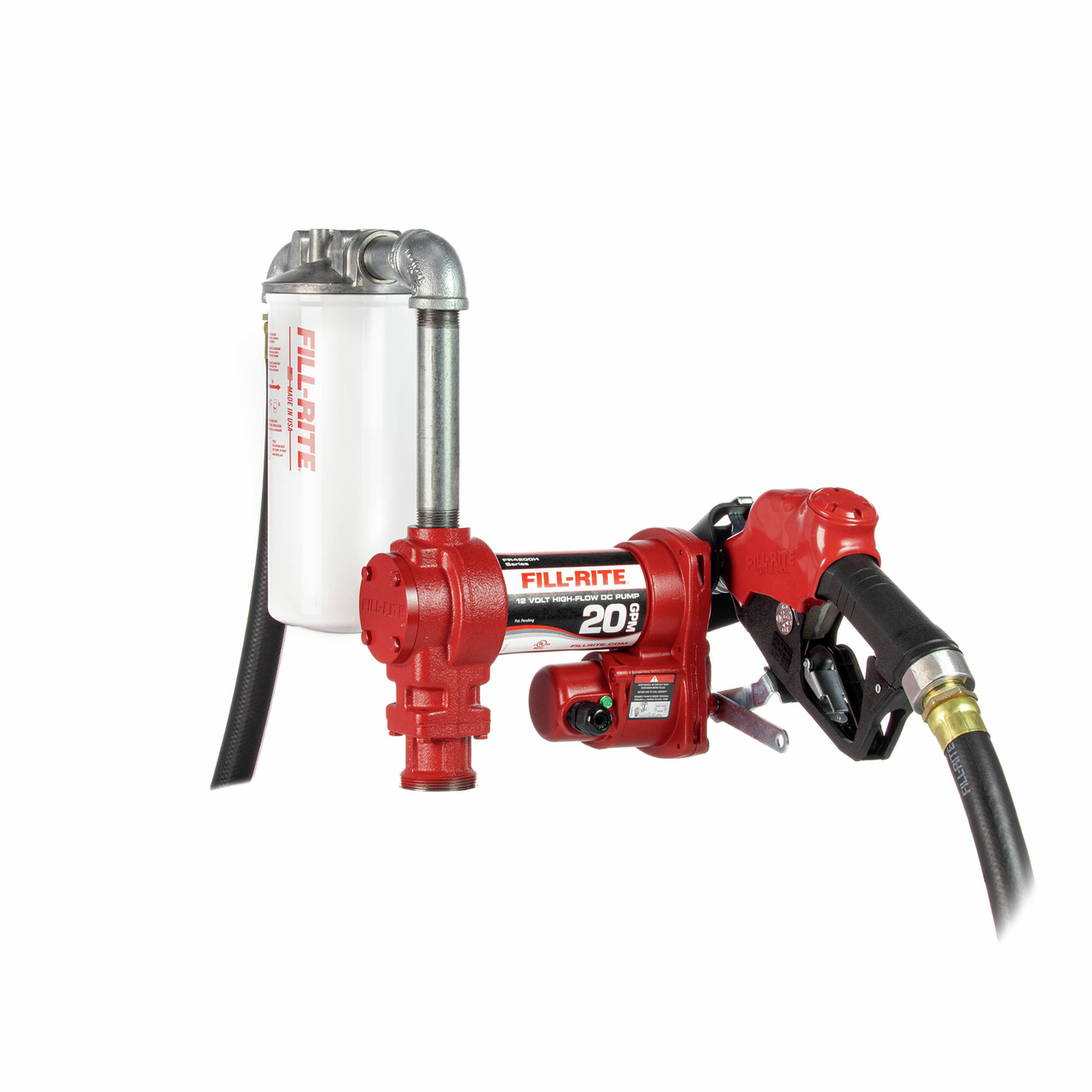

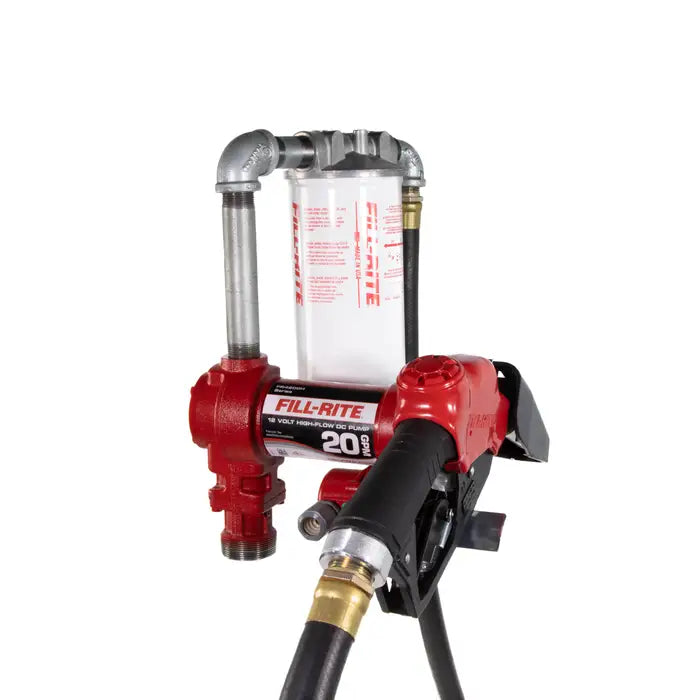

The FR4210HBFQ model is a 12V DC, 20 GPM, heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a filter, hose, nozzle, suction pipe, and installation components.
*Please Note: May be shipped in aftermarket packaging
- Cast-Iron Construction – heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site
- Reliable Performance – Fill-Rite’s trusted rotary vane pump technology delivers 20 gallons per minute, perfect for filling equipment with fuel tanks from 20-80 gallons

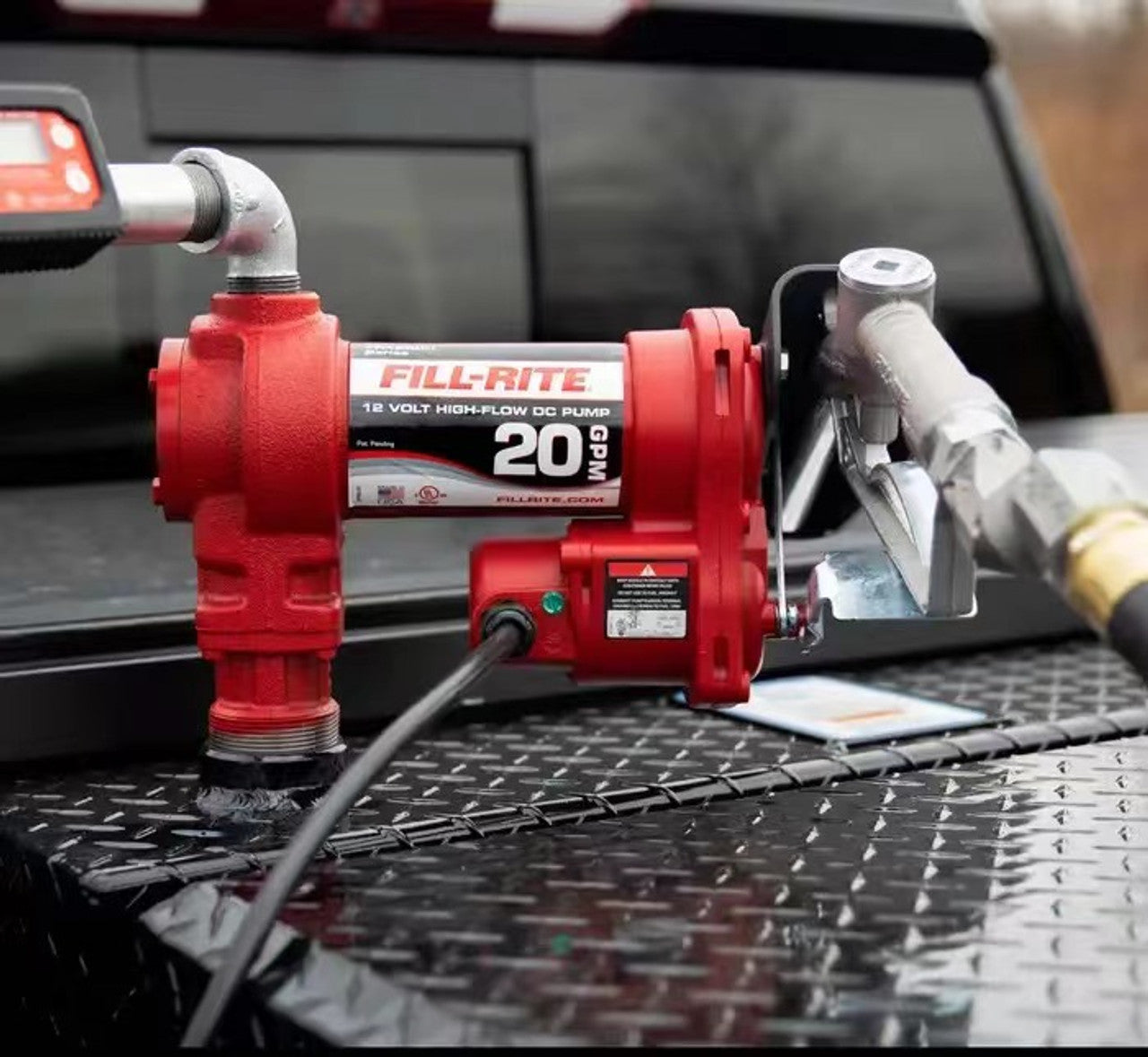

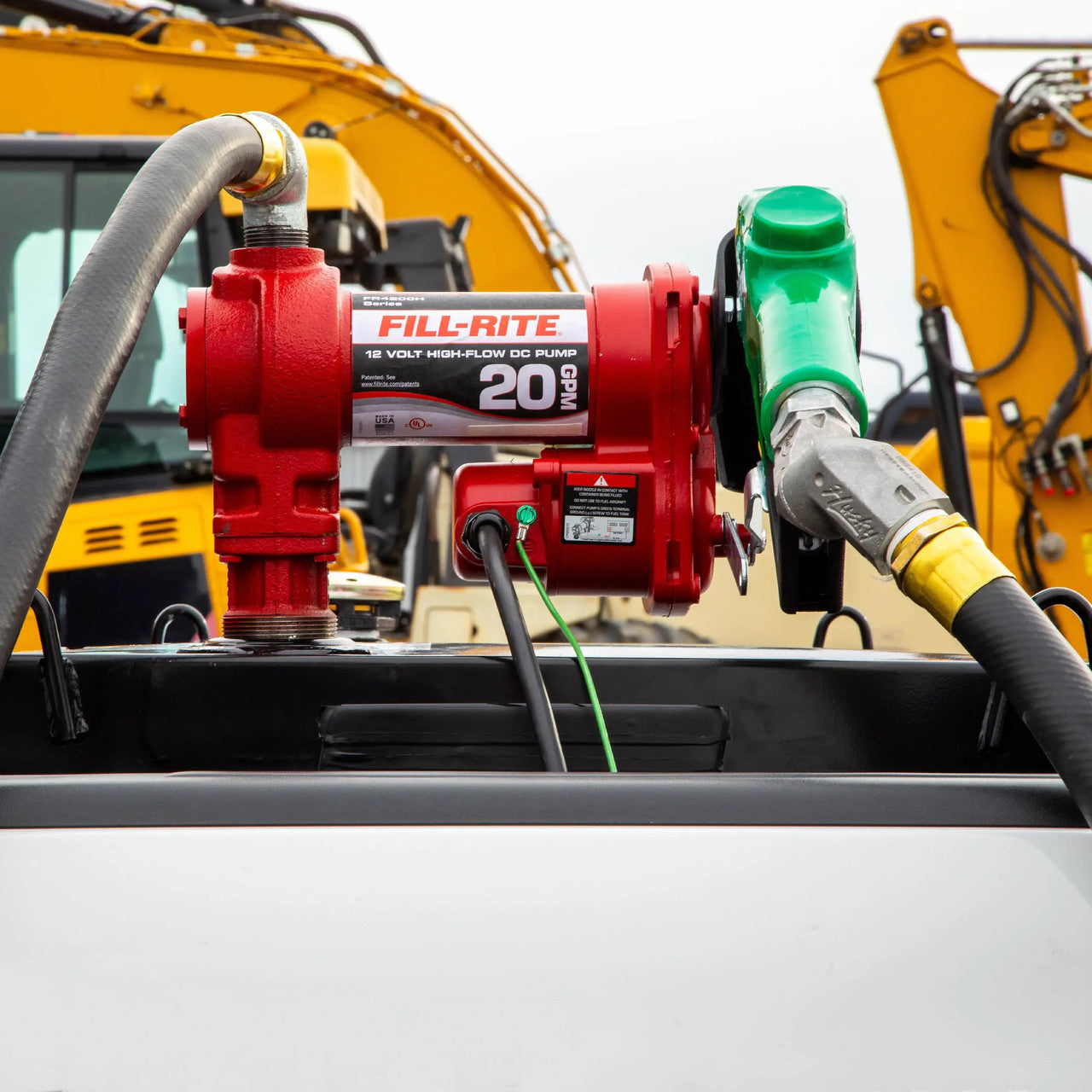

- Mobile Tanks – powered by a 12V motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to 12 volt batteries and installing onto transfer tanks in truck beds
- Fluid Compatibility – designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits
- Easy Installation – adjustable electrical junction box rotates 180° for easier wiring and more flexible installations in tight spaces
- Long Life – thermally-protected motor prevents overheating, ensuring your pump performs for years worry free
- Equipment Safeguard – built-in mesh strainer filters out particulates in your fuel, preventing damage to your equipment
- Reliable On-Off Switch – on-off switch lever features a robust metal stopping arm, preventing premature failure from repeated use
You work through all kinds of conditions, so why shouldn’t your fuel transfer pump? Fill-Rite Company has set the standard for reliable fuel transfer pumps, meters, and accessories. Our customers recognize Fill-Rite for its durability and years of elite performance in the field. Proudly made in the USA with global materials, Fill-Rite equipment is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications. Fill-Rite is supported by a wide network of distributors and retailers, ensuring you will always be able to find replacement parts and rebuild kits for your fuel transfer equipment.
| Max Flowrate | 20 GPM / 75 LPM |
|---|---|
| Power Type | 12V DC |
| Compatible Fluids | Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits |
| Inlet Size / Connection / Thread | 1 " / Female / NPT |
| Outlet Size / Connection / Thread | 1 " / Female / NPT |
| Mounting Size / Thread / Type | 2" / NPT / Bung Mount |
| Duty Cycle (min) | 30 min on / 30 min off |
| Power Source | Electrical |
| Motor Power (HP) | 0.25 |
| Max Current (A) | 19 A |
| Thermal Protection Switch | Yes |
| Self Priming | Yes |
| Suction Lift (ft.) | 8 ' |
| Dry Vacuum (in. Hg) | 5 |
| Operating Temperature Range (°F) | -- |
| Discharge Head (ft) | 37 ' |
| Strainer Mesh Size (Micron) | 20x20 |
| Max Operating Pressure (PSI) | 16 |
| Viscosity Range (cSt) | 1 to 4 |
| Additional Accessories | -- |
|---|---|
| Static Wire | Yes |
| Ground Wire | Yes |
| Cable Length (ft) | 25 |
| Cable Gauge (GA) | 10 |
| Cable Connection | Alligator Clips |
| Filter | 30 Micron Particulate Filter and Filter Head |
| Filter Function | Particulate |
| Suction Pipe | 20” – 34 ½” Steel Telescoping Suction Pipe |
| Suction Hose | -- |
| Pipe Diameter (in.) | -- |
| Discharge Hose | 1” X 18’ Hose with Static Ground Wire |
| Nozzle | 1” Ultra Hi-Flow Automatic Diesel Nozzle (Red) |
| Swivel | -- |
| Swivel Type | -- |
| Swivel Thread Type | -- |
| Swivel Size | -- |
| Additional Accessories | -- |
