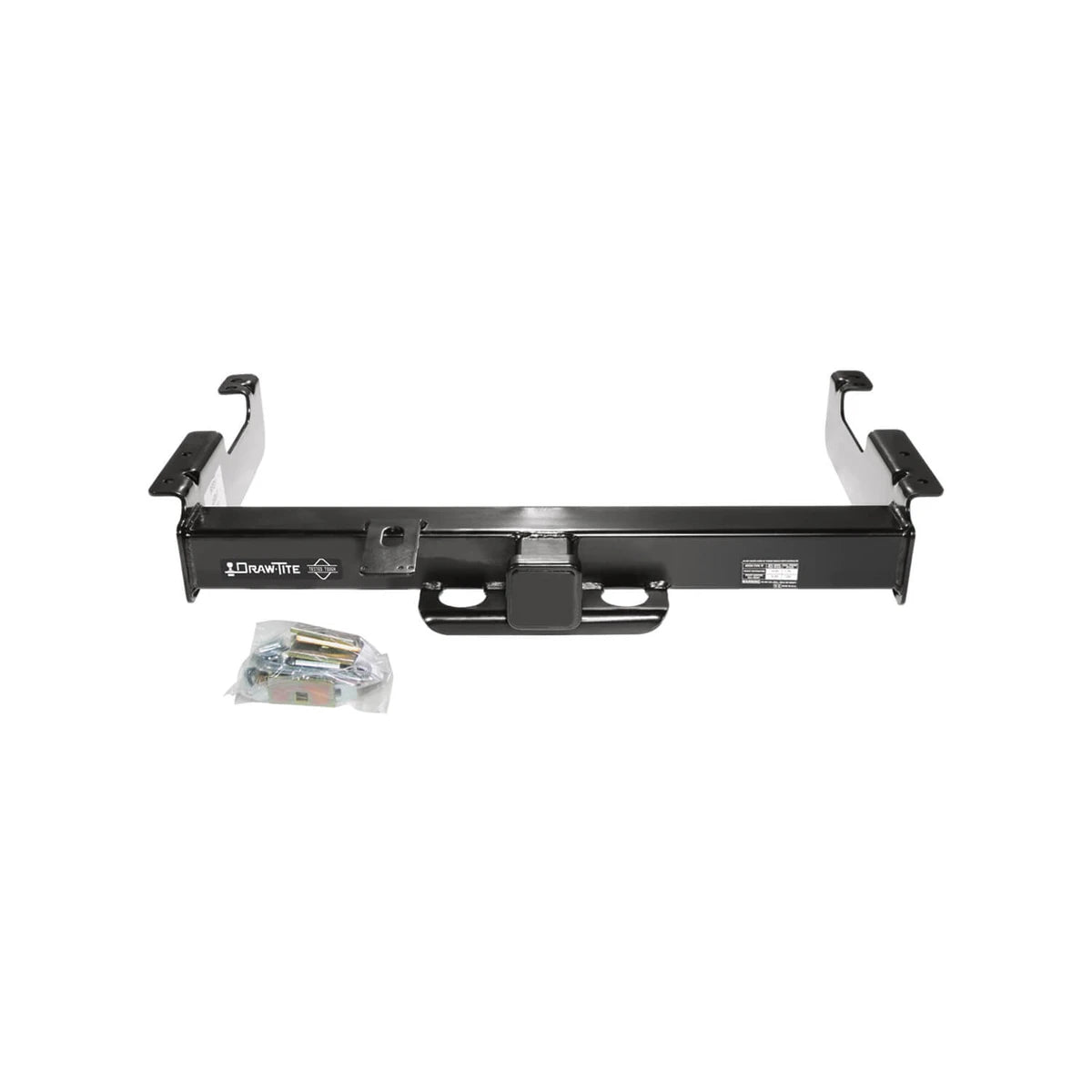

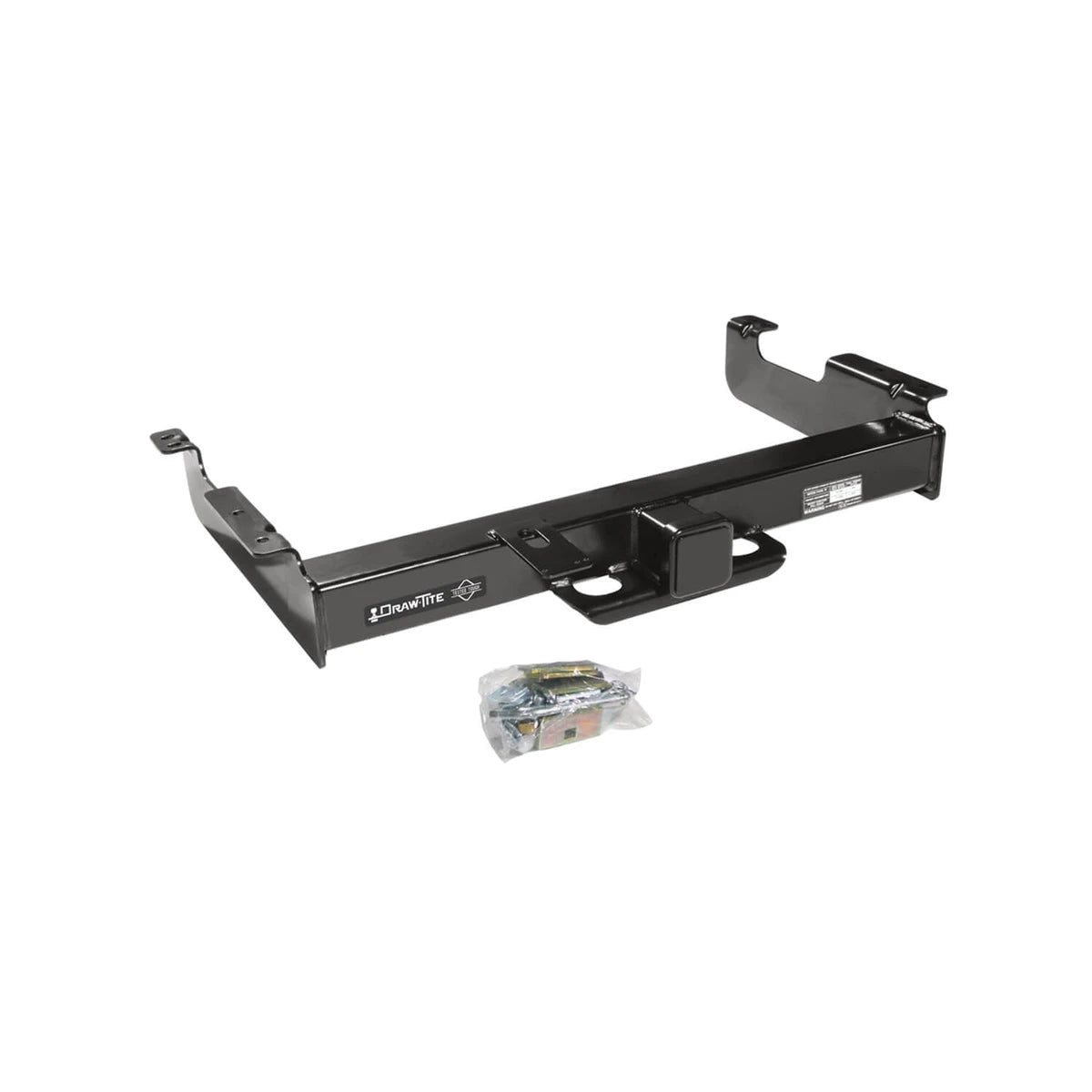

Draw-Tite 45507 For Chevrolet Express/ GMC Savana, Class V Hitch

Draw-Tite Ultra Frame Receiver Bracket Kits are made from the highest quality materials, and guarantee to deliver superior functionality and durability.

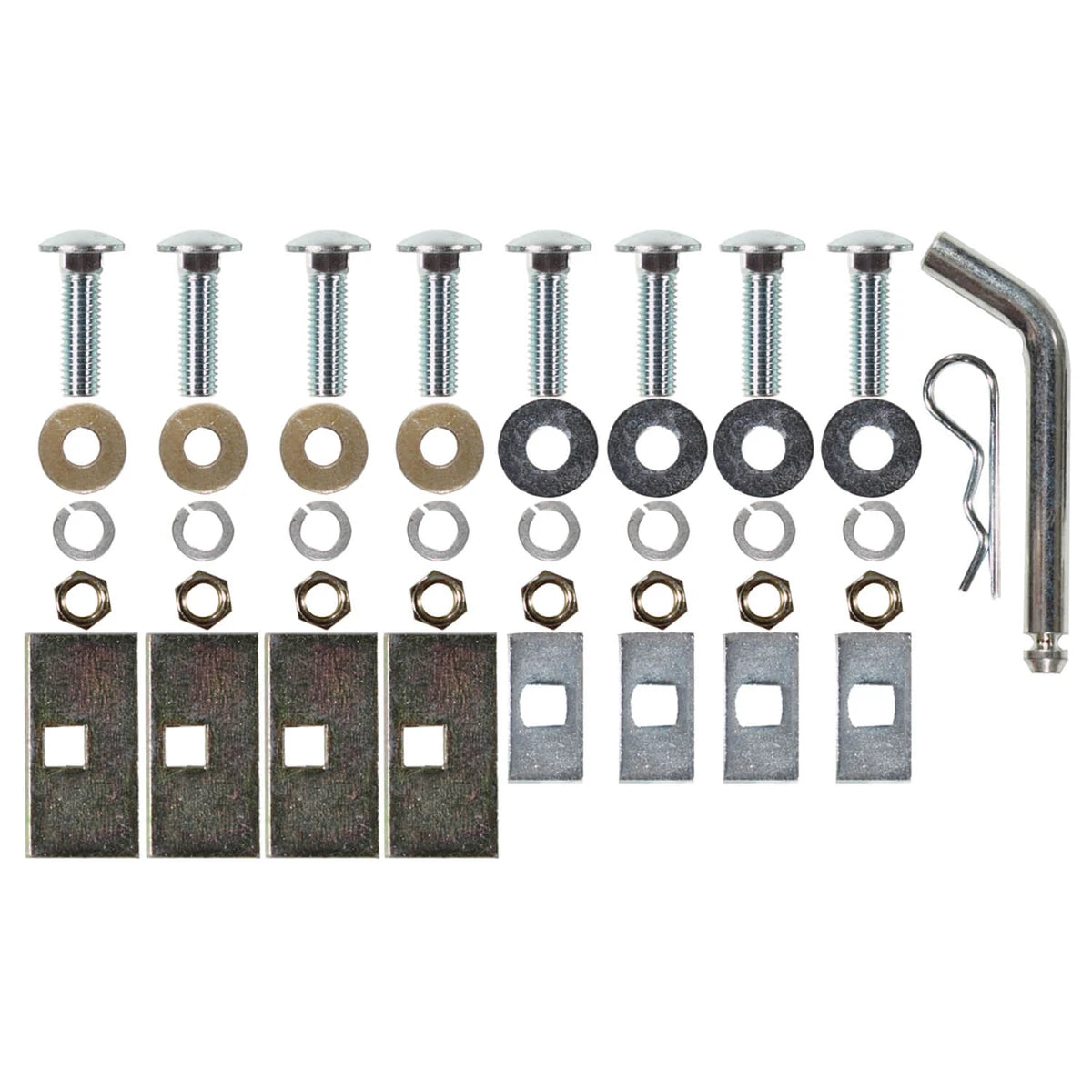

DRAW-TITE® Class 5 trailer hitches are the choice of professionals and big toy haulers who need to get the job done! These Class 5 heavy-duty hitches are rated for up to 12,000 lbs. gross trailer weight (GTW) and up to 1,200 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 14,000 lbs. weight distribution (WD) and 1,700 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The 2-1/2 inch square receiver tube opening, bigger chain loops, tighter ball mount fit, and reinforced pin holes make these heavy-duty hitches ideal for toy haulers and commercial vehicles alike. Includes all the mounting hardware needed for installation. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North America’s Favorite Hitch.

• CUSTOM DESIGNS: DRAW-TITE Class 5 trailer hitches are custom built according to manufacturer specifications to ensure a perfect fit.
• STRENGTH: Made of solid, all-welded steel for maximum strength and safety, each hitch is put through rigorous fatigue and stress testing to withstand road abuse (within specified capacities). Protected by a two-part black powder coat finish to resist rust and corrosion.
• TESTED: DRAW-TITE hitches are tested to meet and exceed V-5 and SAE J684 standards.
• CAPACITY: Rated for up to 12,000 lbs. GTW and up to 1,200 lbs. TW. For use with Weight Distribution systems of up to 14,000 lbs. WD and 1,700 lbs. WDTW.
• VERSATILE: This DRAW-TITE Class 5 hitch is designed to fit: 1996-2026 Chevrolet Express 2500, 1996-2026 Chevrolet Express 3500, 1996-2026 GMC Savana 2500, 1996-2026 GMC Savana 3500.
